● Made of stainless steel material for long-term stability.
● Can replace existing shafts for easy installation.
● Suitable for safety monitoring of port, dock cargo measurement, gantry cranes, and lifting equipment.
● Customizable dimensions and shapes.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 50kN | Insulation resistance | ≥2000 MΩ / 100VDC |
| Sensitivity | 1.015% mV/V | Excitation voltage | 10V |
| Zero-point balance | ± 2% F.S. | Maximum excitation voltage | 15V |
| Nonlinearity | 0.5% F.S. | Temperature compensation range | -10~60℃ |
| Hysteresis error | 0.2% F.S. | Operating temperature range | -20~80℃ |
| Repeatability | 0.2% F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.05% F.S. | Destruction load (E d) | 300％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S./ 10℃ | Cable wire size | M12×1--4P |
| Temperature coefficient of zero drift | 0.03％ F.S./ 10℃ | Material | Stainless steel |
| Input resistance | 750±30 Ω | Unit weight | 1.8 kg |
| Output resistance | 700±10 Ω | Protection | IP67 |

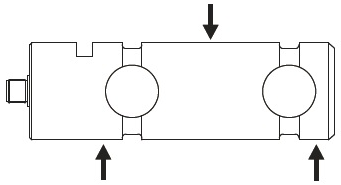

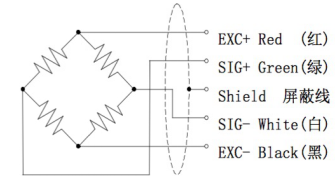

Direction of force | Wiring method |
 |  |
