● Compact structure, easy to install.
● Protection level: IP67.
● Mainly used for brake pressure measurement.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 500,1000,1500,2500,5000N | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 1.5±10% mV/V | Excitation voltage | 5~15V |
| Zero-point balance | ± 2% F.S. | Maximum excitation voltage | 20V |
| Nonlinearity | 0.2% F.S. | Temperature compensation range | -10~60℃ |
| Hysteresis error | 0.1% F.S. | Operating temperature range | -20~80℃ |
| Repeatability | 0.1% F.S. | Safe load (E L) | 120％ F.S. |
| Creep (30 minutes) | 0.05% F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S./ 10℃ | Cable wire size | φ4×2000 mm |
| Temperature coefficient of zero drift | 0.03％ F.S./ 10℃ | Material | Al alloy |
| Input resistance | 780±30 Ω | Unit weight | 0.4 kg |
| Output resistance | 700±10 Ω | Protection | IP67 |

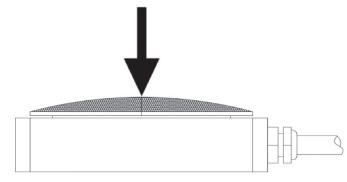

Direction of force | Wiring method |
 |  |
