● Convenient installation, only requires bolt fastening.
● Can be reused.
● Protection level: IP66.
● Uses high elastic material as strain material, and high precision strain gauges as sensitive components for high accuracy and long-term stability.
● Used in large-scale equipment, bridges, railways, grain silos, dams, and other engineering fields for measuring strain and stress at installation points.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 800 μ m/m | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 1.5±10% mV/V | Excitation voltage | 5~12V |
| Zero-point balance | ± 5% F.S. | Maximum excitation voltage | 15V |
| Nonlinearity | Temperature compensation range | -10~40℃ | |
| Hysteresis error | Operating temperature range | -20~60℃ | |
| Repeatability | Safe load (E L) | 150％ F.S. | |
| Creep (30 minutes) | Destruction load (E d) | 200％ F.S. | |
| Temperature coefficient of sensitivity drift | 0.2％ F.S./ 10℃ | Cable wire size | φ6×4000 mm |
| Temperature coefficient of zero drift | 0.2％ F.S./ 10℃ | Material | Al alloy |
| Input resistance | 1000±20 Ω | Unit weight | 0.4 kg |
| Output resistance | 1000±20 Ω | Protection | IP66 |

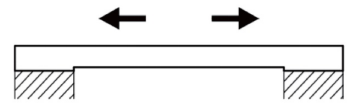

Direction of force | Wiring method |
 |  |
