● Static torque sensor;
● Compact structure, Easy to install;
● Protection levelIP65;
● Used for measuring static, non-continuous rotational torque values.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

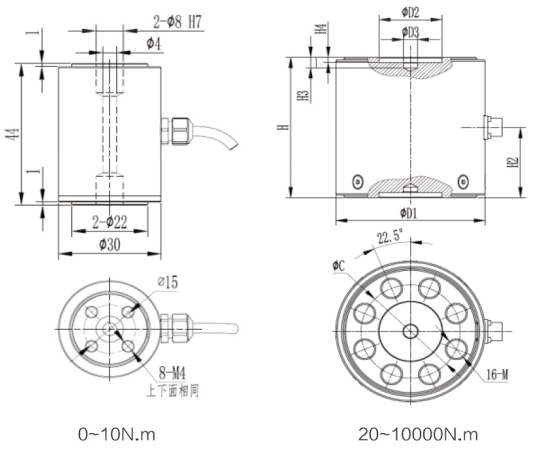

| Measurement range Cap (N.m) | D1 | D2 | D3 | C | H | H2 | H3 | H4 | M |
| 0.2,50,100 | 50 | 20H7 | 8H8 | 30 | 61 | 30.5 | 8 | 4 | M 6 deep 8 |
| 200,300,50 | 73 | 30H7 | 10H8 | 45 | 82 | 41 | 8 | 4 | M 10 deep 15 |
| 1,1.5,2 | 107 | 45H7 | 10H8 | 71 | 107 | 54 | 8 | 4 | M 16 deep 22 |
| 4,5,6 kN.m | 141 | 60H7 | 10H8 | 95 | 130 | 65 | 8 | 4 | M 20 deep 25 |
| 10 kN.m | 205 | 120H7 | 10H8 | 155 | 170 | 85 | 12 | 8 | M 24 deep 35 |
| Rated range | 0.2,0.5,2,5,10,20,50,100,200 N.m 0.2,0.3,0.5,1,1.5,2,4,5,6,10 kN.m | Insulation resistance | ≥5000 MΩ / 100VDC |
| Rated output | 1.5±10% mV/V | Excitation voltage | 5~15V |
| Zero-point balance | ± 2% F.S. | Maximum excitation voltage | 20V |
| Nonlinearity | 0.1％ F.S. | Temperature compensation range | -10~60℃ |
| Hysteresis error | 0.1％ F.S. | Operating temperature range | -20~80℃ |
| Repeatability | 0.05％ F.S. | Safe load (E L) | 120％ F.S. |
| Creep (30 minutes) | 0.1％ F.S. | Destruction load (E d) | 150％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S./ 10℃ | Cable wire size | φ3×4000 mm |
| Temperature coefficient of zero drift | 0.05％ F.S./ 10℃ | Material | |
| Input resistance | 410±20 Ω | Unit weight | |
| Output resistance | 350±10 Ω | Protection | IP65 |

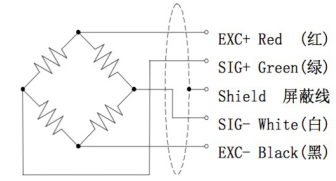

Direction of force | Wiring method |
 |  |
