Category: Torque sensors

T903B static torque sensor is commonly used for measuring rapidly changing torque on non-rotating shafts. Our static torque sensors range from 0.2 N.m to 150 N.m, providing accurate measurements for torque applied to the sensor axis in two rotational directions. The sensor structure is very compact and installation is convenient.

Characteristics and Uses

● Static torque sensor;

● Compact structure, Easy to install;

● Protection levelIP65;

● Used for measuring static, non-continuous rotational torque values.

● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

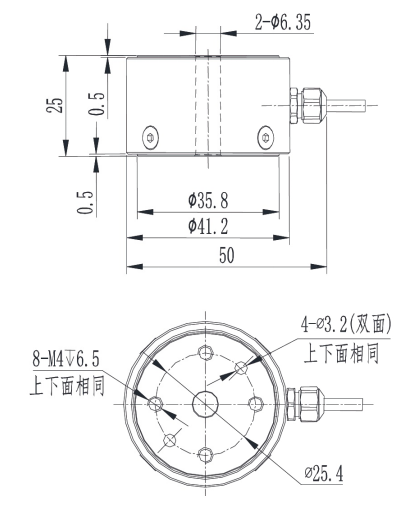

Installation dimensions

T903B Static torque sensor 1.png

Parameter table

Rated range	0.2,0.5,1,2,5,6,10, 20,30,50,100,150 N.m	Insulation resistance	≥5000 MΩ / 100VDC
Rated output	1.5±10% mV/V	Excitation voltage	5~15V
Zero-point balance	± 2% F.S.	Maximum excitation voltage	20V
Nonlinearity	0.2％ F.S.	Temperature compensation range	-10~60℃
Hysteresis error	0.2％ F.S.	Operating temperature range	-20~80℃
Repeatability	0.1％ F.S.	Safe load (E L)	120％ F.S.
Creep (30 minutes)	0.1％ F.S.	Destruction load (E d)	150％ F.S.
Temperature coefficient of sensitivity drift	0.05％ F.S./ 10℃	Cable wire size	φ3×4000 mm
Temperature coefficient of zero drift	0.05％ F.S./ 10℃	Material	Al alloy
Input resistance	410±20 Ω	Unit weight	0.2kg
Output resistance	350±10 Ω	Protection	IP65
