Category: Torque sensors

T903 static torque sensor is commonly used for measuring rapidly changing torque on non-rotating shafts. The range is from 0.2 N.m to 150 N.m, providing accurate measurements for torque applied to the sensor axis in two rotational directions. The sensor structure is very compact and installation is convenient.

Characteristics and Uses

● Static torque sensor.

● Compact structure, easy to install.

● Protection level: IP65.

● Used for measuring static, non-continuous rotational torque values.

● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

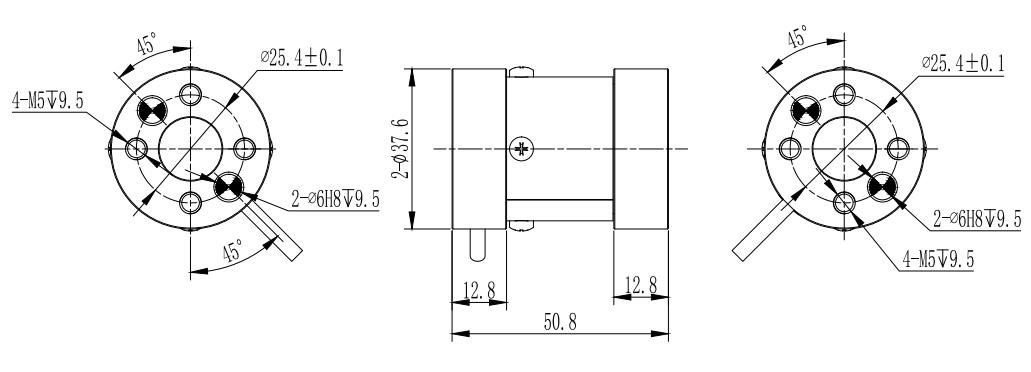

Installation dimensions

T903 Static torque sensor1.jpg

Parameter table

Rated range	0.5,1,2,3,5,6,10,20,30, 50,75,100,150 200N.m	Insulation resistance	≥2000 MΩ / 50VDC
Output sensitivity	1.5±20% mV/V（≤2N.m） 1.0±20% mV/V（>2N.m）	Excitation voltage	5~12V
Zero-point balance	± 5% F.S.	Maximum excitation voltage	15V
Nonlinearity	0.1％ F.S.	Temperature compensation range	-20~40℃
Hysteresis error	0.1％ F.S.	Operating temperature range	-20~60℃
Repeatability	0.1％ F.S.	Safe load (E L)	120％ F.S.
Creep (30 minutes)	0.1％ F.S.	Destruction load (E d)	150％ F.S.
Temperature coefficient of sensitivity drift	0.1％ F.S./ 10℃	Cable wire size	φ3×4000 mm
Temperature coefficient of zero drift	0.1％ F.S./ 10℃	Material
Input resistance	780±20 Ω	Unit weight
Output resistance	700±10 Ω	Protection	IP65
