● Stainless steel material, strong stability
● Suitable for various environments, IP67
● Primarily used for measuring tension of various types of lines
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 10,20,50,100,200 N | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 2.0±0.02% mV/V | Excitation voltage | 5~15V |
| Zero-point balance | ±2% F.S. | Maximum excitation voltage | 20V |
| Nonlinearity | 0.1％F.S. | Temperature compensation range | -10~40℃ |
| Hysteresis error | 0.2％F.S. | Operating temperature range | -30~70℃ |
| Repeatability | 0.1％F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.1％F.S. | Destruction load (E d) | 300％ F.S. |
| Temperature coefficient of sensitivity drift | 0.03％ F.S./ 10℃ | Cable wire size | φ4×1500 mm |
| Temperature coefficient of zero drift | 0.03％ F.S./ 10℃ | Material | 0.2kg |
| Input resistance | 350±10 Ω | Single wire weight G | Stainless steel |
| Output resistance | 350±10 Ω | Protection | IP67 |

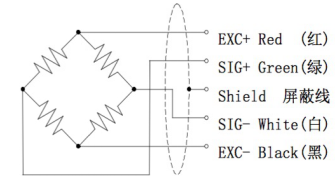

Direction of force | Wiring method |
 |  |
