● Low height, minimal deformation. Small size.
● Stainless steel material, customizable for high temperatures.
● Protection level: IP68, customizable.
● Used in applications such as automotive press-in, automated assembly, testing of 3C products, assembly of new energy products, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
●High dynamic response frequency.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 1,2.5,5,7.5,15t | Insulation resistance | ≥5000MΩ/100VDC |
| Output sensitivity | 2.0±0.1%mV/V | Excitation voltage | 5-15V |
Zero output | ±0.05mV/V | Maximum excitation voltage | 15 V |
Nonlinearity | 0.03%F.S. | Temperature compensation range | -10-60℃ |
| Hysteresis error | 0.03%F.S. | Operating temperature range | -20~80℃ |
| Repeatability | 0.02%F.S. | Safe overload | 150%F.S. |
| Creep (30 minutes) | 0.05%F.S. | Ultimate overload | 300%F.S. |
| Temperature coefficient of sensitivity drift | 0.03%F.S/10℃ | Cable wire size | φ5×4000mm |
| Temperature coefficient of zero drift | 0.03%F.S/10℃ | Material | Stainless Steel(Stainless steel) |
| Input resistance | 780±20Ω | Protection | IP68 |
| Output resistance | 700±10Ω | ||

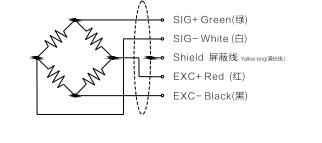

Direction of force | Wiring method |
 |  |
