● Made of stainless steel material, providing strong stability.
● High comprehensive sensitivity and compact structure.
● Four-corner deviation already compensated.
● Long-term good stability.
● Primarily used in stainless steel waterproof scales and in-process weighing in the chemical and pharmaceutical industries.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 50,100,200,300,500,1000 kg | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 2.0±0.002 mV/V | Excitation voltage | 5 V |
| Zero-point balance | ≤1% F.S. | Maximum excitation voltage | 15 V |
| Nonlinearity | ≤0.017％ F.S. | Temperature compensation range | -10~40℃ |
| Hysteresis error | ≤0.017％ F.S. | Operating temperature range | -40~65℃ |
| Repeatability | ≤0.01％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | ≤0.017％ F.S. | Destruction load (E d) | 300％ F.S. |
| Temperature coefficient of sensitivity drift | ≤0.002％ F.S. / 10℃ | Cable wire size | φ6.3×2500 mm |
| Temperature coefficient of zero drift | ≤0.002％ F.S. / 10℃ | Material | 0.9 kg |
| Input resistance | 380±20 Ω | Unit weight (G) | Stainless steel |
| Output resistance | 350±10 Ω | Protection | IP67 |

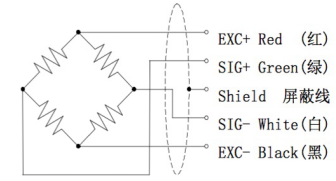

Direction of force | Wiring method |
 |  |
