● Stainless steel material, strong stability;
● High comprehensive sensitivity, compact structure;
● Four-corner deviation has been compensated;
● Long-term good stability;
● Mainly used for stainless steel waterproof scales, process weighing in the chemical and pharmaceutical industries.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 50,100,200,300,500,1000 kg | Insulation resistance | ≥5000MΩ/ 100VDC |
| Sensitivity | 2.0±10% mV/V | Excitation voltage | 5 V |
| Zero-point balance | ≤1% F.S. | Maximum excitation voltage | 15 V |
| Nonlinearity | ≤0.017％F.S. | Temperature compensation range | -10〜40℃ |
| Hysteresis error | ≤0.017％F.S. | Operating temperature range | -40〜65℃ |
| Repeatability | ≤0.01％F.S. | Safe load (E L) | 150％F.S. |
| Creep (30 minutes) | ≤0.017％F.S. | Destruction load (E d) | 200％F.S. |
| Temperature coefficient of sensitivity drift | ≤0.002％ F.S. / 10℃ | Cable wire size | φ6×3000 mm |
| Temperature coefficient of zero drift | ≤0.002％ F.S. / 10℃ | Tighten Torque | 30N.m 160N.m |
| Input resistance | 380±20Ω | Material | Stainless steel |
| Output resistance | 350±10Ω | Protection | IP68 |

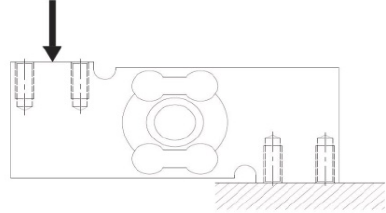

Direction of force | Wiring method |
 |  |
