● Made of aluminum alloy material.
● Made of stainless steel material, providing strong stability.
● Suitable for various environments, IP65.
● Primarily used in electronic scales, counting scales, electronic balances, and various industrial weighing systems.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 3,6,10,20,50,100,200 kg | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | C3 | Excitation voltage | 5~15 V |
| Zero-point balance | 2.0±10% mV/V | Maximum excitation voltage | 20 V |
| Nonlinearity | ±2％ F.S. | Temperature compensation range | -10〜40℃ |
| Hysteresis error | 0.0166％ F.S. | Operating temperature range | -10〜50℃ |
| Repeatability | 0.0166％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.017％ F.S. | Destruction load (E d) | 300％ F.S. |
| Temperature coefficient of sensitivity drift | 0.017％ F.S. / 10℃ | Cable wire size | φ5.2×1600 mm |
| Temperature coefficient of zero drift | 0.02％ F.S. / 10℃ | Material | 0.9 kg |
| Input resistance | 420±20 Ω | Unit weight (G) | Stainless steel (Stainless Steel) |
| Output resistance | 350±10 Ω | Protection | IP67 |

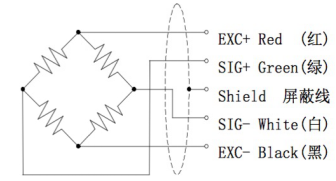

Direction of force | Wiring method |
 |  |
