●High precision, strong resistance to bias load
●Easy to install, IP66
●Accept custom specifications
● Large measurement range, suitable for aircraft and ship installation testing.

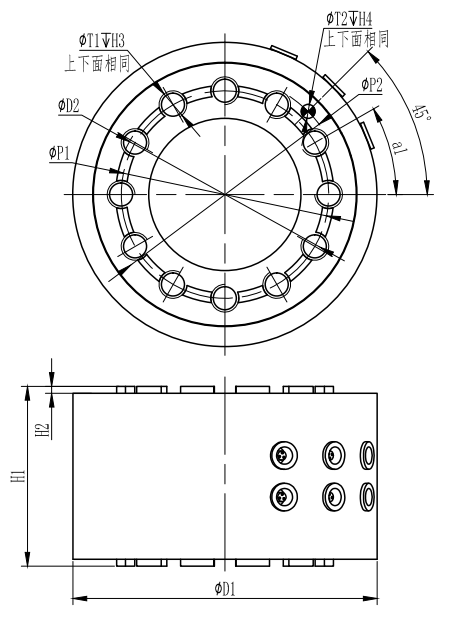

| Measurement range | H1 | D1 | H2 | P1 | D2 | T1 | H3 | P2 | T2 | H4 | a1 |
| Fx=Fy=30kN,Fz=100kN Mx=My=1.5kN.m Mz=1kN.m | 52 | 88 | 2 | 60±0.1 | 63-0.05 | M8 | 8 | 68+0.05 | 4H7 | 5 | 12×30° |
| Fx=Fy=80kN,Fz=200kN Mx=My=Mz=5kN.m | 60 | 124 | 90±0.1 | 95-0.05 | M12 | 10.5 | 103+0.05 | ||||
| Fx=fy=200kN,Fz=500kN Mx=My=20kN.m,Mz=10kN.m | 82 | 169 | 130±0.1 | 136-0.05 | M16 | 22 | 145+0.05 | ||||
| Fx=Fy=300kN,Fz=1000kN Mx=My=25kN.m,Mz=15kN.m | 112 | 180 | 145-0.05 | M20 | 16 | 155+0.05 | 7 | ||||
| Fx=Fy=500kN,Fz=1000kN Mx=My=100kN.m,Mz=25kN.m | 180 | 250 | 5 | 200±0.2 | 205-0.1 | 30 | 220+0.05 | 6H7 | 8 | ||
| Fx=Fy=500kN,Fz=4000kN Mx=My=Mz=200kN.m | 180 | 352 | 280±0.2 | 300-0.5 | M30 | 30 | 280-0.05 | 8H7 | 10 | 16×22.5+11.25° |
| Parameters | Specifications | Technique |
| Rated range | Nomial load | Please refer to the table |
| Zero output | Zero balance | ±5%mV/V |
| Nonlinearity | Non-linearity | 0.3%F.S. |
| Hysteresis | Hysteresis | 0.3%F.S. |
| Repeatability | Repeatability | 0.3%F.S. |
| Input resistance | Input impedance | ≥350Ω |
| Output resistance | Output impedance | ≥350Ω |
| Insulation resistance | Insulation | ≥2000MΩ/50VDC |
| Excitation voltage | Recommended excitation | 5~12V |
| Maximum excitation voltage | Maxmum excitation | 15V |
| Temperature compensation range | Compensated temp range | -10~40℃ |
| Operating temperature range | Operation temp range | -20~60℃ |
| Safe overload | Safe overload | 120%F.S. |
| Ultimate overload | Ultimate overload | 150%F.S. |
| Cable size | Cable size | 6-φ4×4000mm |
| Protection level | Protection class | IP65 |

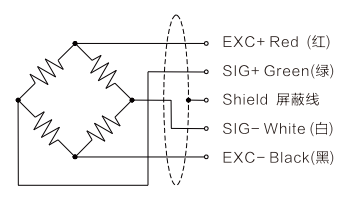

Wiring diagram |
 |
