● Large measurement range spoke type sensor;
● High-quality alloy steel / stainless steel material;
● Bi-directional tension and compression;
● Used for testing machines, automotive scales, hopper scales, and various industrial weighing systems.
● Customizable其他Measurement range。
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 100,200,250,300,400,5006,600,800 T (Customizable 1000,1500,2000,2500,3000 T ) | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 2.0±1％ mV/V | Excitation voltage | 5~15V |
| Zero-point balance | ±1％ F.S. | Maximum excitation voltage | 20V |
| Nonlinearity | 0.01％ F.S. | Temperature compensation range | -10~40℃ |
| Hysteresis error | 0.01％ F.S. | Operating temperature range | -20~70℃ |
| Repeatability | 0.01％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.05％ F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S./ 10℃ | Cable wire size | Φ5×6000 mm |
| Temperature coefficient of zero drift | 0.05％ F.S./ 10℃ | Material | Stainless steel / Alloy steel |
| Input resistance | 780±10 Ω | Unit weight (G) | |
| Output resistance | 700±5 Ω | Protection | IP66 |

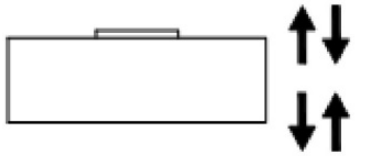

Direction of force | Wiring method |
 |  |
