● Spoke type sensor;
● Material: Alloy steel / Stainless steel;
● Bi-directional tension and compression;
● Used for testing machines, automotive scales, hopper scales, and various industrial weighing systems;
● Customizable measurement range;
● Can be used as a measurement reference source.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 0.5,1,2,3,5,10,20,30,50 T | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 2.0±10％ mV/V | Excitation voltage | 5V |
| Zero-point balance | ±1％ F.S. | Maximum excitation voltage | 15V |
| Nonlinearity | 0.03％ F.S. | Temperature compensation range | -10~40℃ |
| Hysteresis error | 0.03％ F.S. | Operating temperature range | -10~70℃ |
| Repeatability | 0.02％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.03％ F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.02％ F.S./ 10℃ | Cable wire size | |
| Temperature coefficient of zero drift | 0.02％ F.S./ 10℃ | Material | |
| Input resistance | 780±20 Ω | Unit weight (G) | |
| Output resistance | 700±10 Ω | Protection | IP67 |

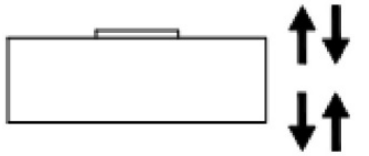

Direction of force | Wiring method |
 |  |
