● Spoke type sensor
● Material: Alloy steel/Stainless steel
● Bi-directional tension and compression, customizable measurement range
● Application: Automotive assembly, automated assembly, 3C product testing, assembly of new energy products, medical testing, robotics, mold assembly, and other industrial measurement and control systems. Also suitable for testing machines, automotive scales, hopper scales, and various industrial weighing systems.
| Rated range | 0.2,1,2,3,5,10,15,20,25,30,50,60 t | Insulation resistance | ≥5000 MΩ / 100VDC |
| Output sensitivity | 2.0±1％ mV/V (50~500kg,50~60t) 3.0±1％ mV/V (1~30t) | Excitation voltage | 5~12V |
| Zero-point balance | ±1％ F.S. | Maximum excitation voltage | 15V |
| Nonlinearity | 0.03％ F.S. | Temperature compensation range | -10~40℃ |
| Hysteresis error | 0.03％ F.S. | Operating temperature range | -10~60℃ |
| Repeatability | 0.03％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.03％ F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.02％ F.S./ 10℃ | Cable wire size | Φ5×6000 mm |
| Temperature coefficient of zero drift | 0.02％ F.S./ 10℃ | Material | |
| Input resistance | 380/780±20 Ω | Unit weight (G) | |
| Output resistance | 350/700±10 Ω | Protection | IP66 |

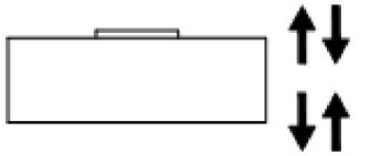

Direction of force | Wiring method |
 |  |
