Characteristics and Uses● Stainless steel;
● Automotive assembly, automated assembly, 3C product testing, assembly of new energy products, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 50,100,200,300,500 kg | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 2.0±0.1％ mV/V | Excitation voltage | 5~15V |
| Zero-point balance | ±2％ F.S. | Maximum excitation voltage | 20V |
| Nonlinearity | 0.03％ F.S. | Temperature compensation range | -10~60℃ |
| Hysteresis error | 0.03％ F.S. | Operating temperature range | -20~80℃ |
| Repeatability | 0.03％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.03％ F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.03％ F.S./ 10℃ | Cable wire size | Φ5×4000 mm |
| Temperature coefficient of zero drift | 0.03％ F.S. / 10℃ | Material | Stainless steel |
| Input resistance | 780±20 Ω | Unit weight (G) | |
| Output resistance | 700±10 Ω | Protection | IP68 |

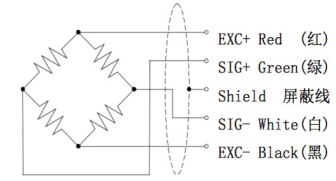

Direction of force | Wiring method |
 |  |
