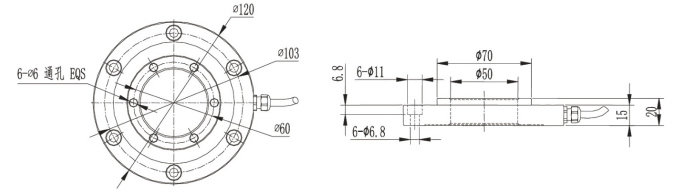

● Flange type sensor;
● Made of stainless steel / alloy steel;
● Bi-directional tension and compression, customizable measurement range;
● Application in medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems;
● Also suitable for various industrial weighing systems such as testing machines, automotive scales, hopper scales, etc.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 0.1,0.2,0.5,1,2,3,5,10 T | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 1.5±10％ mV/V | Excitation voltage | 5~12V |
| Zero-point balance | ±2％ F.S. | Maximum excitation voltage | 15V |
| Nonlinearity | 0.2％ F.S. | Temperature compensation range | -10~40℃ |
| Hysteresis error | 0.2％ F.S. | Operating temperature range | -20~70℃ |
| Repeatability | 0.1％ F.S. | Safe load (E L) | 120％ F.S. |
| Creep (30 minutes) | 0.03％ F.S. | Destruction load (E d) | 150％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S. / 10℃ | Cable wire size | Φ4×4000 mm |
| Temperature coefficient of zero drift | 0.05％ F.S. / 10℃ | Material | Stainless steel / Alloy steel |
| Input resistance | 780±10 Ω | Unit weight (G) | |
| Output resistance | 700±5 Ω | Protection | IP66 |

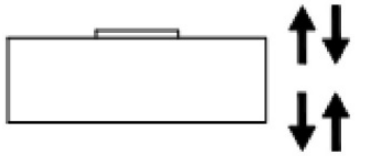

Direction of force | Wiring method |
 |  |
