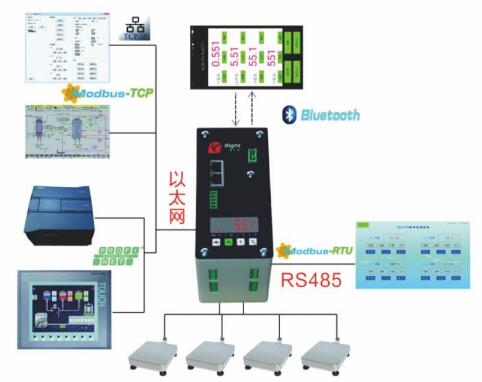

● Mainly used in PLC control system or DCS. computer management control system, the instrument will be the weight through the serial port or Ethernet port or PROFINET industrial Ethernet will be the weight transmission to the PLC or DCS, computer;
● Support 1 to 4 channels of platform scale access, AD maximum rate of 200 times / sec.
● 100000 high display accuracy, 6000e CMC certified accuracy.
● 1 RS232/485 serial port, 2 Ethernet ports (100M), with switch function.
● Support MODBUS-RTU & MODBUS-TCP.
● Support PROFINET, TCP/IP.
● Support cell phone APP or computer tool to configure meter and calibration.
● Standard industrial DIN rail mounting (DIN )
● Application areas: automotive press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics field, mold assembly and other industrial testing, measurement and control systems.
| Accuracy Class | Class III accuracy | connection method | Four-wire or six-wire |
| demonstrate | 6-Digit, 7-Segment, Red L ED Display | calibrate | Weight calibration, support remote calibration |
| weighing state | Gross, Net, Dynamic, Zero. Channel switching, communication status | filtering radio waves | Adjustable 5-level digital filtering |
| button or key (on a device) | Function keys, tare, clear Zeroing, Switching | serial port communication | COM1-RS232485 as standard. Supports MODBUS-RTU |
| A/D conversion speed | 200次/秒times/second | Ethernet | 2 Ethernet ports, support TCP continuous weight output. MODBL JS-TCP,PROFINET |
| Acceptance Sensitivity | 0to 19 mVN | bluetooth | Connect to mobile APP for configuration, calibration and maintenance |
| Non-linearity and temperature coefficient | ≤0.0015%FS;≤5ppm/C | Operating Temperature Range | -10~40C，95%RH |
| Sensor excitation voltage | 5VDC provides up to 150mA | Power supply | 220VAC or 24VDC |
| Input Load | 4*3502 sensor Load cells | Installation | DIN standard industrial rails |
