● For the need to measure the force signal conversion to digital communication signals, standard analog output signals and simple control occasions
● Analog output signals can be selected from 4 ~ 20mA, 0 ~ ± 10 V
● Digital communication interface can be selected from RS485 or RS232
● Various filtering and debugging modes, easier to obtain the target value
● Power supply and signal are isolated, strong anti-interference ability, more stable data acquisition and output
● Comparable output, peak capture and peak comparison output
● Non-weight calibration, TEDS automatic calibration
● High-speed sampling (up to 1600 times), fast display speed
● Controller power supply using isolated DC24V ±10%, more secure and stable power supply

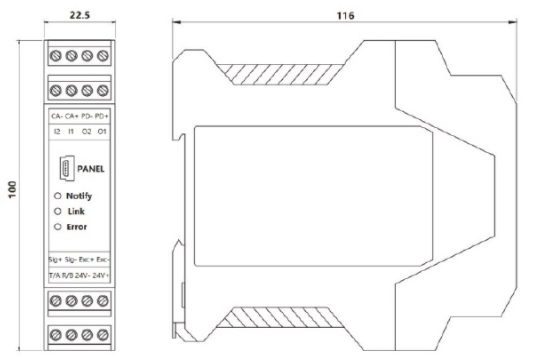

● 35mm standard industrial rail mounting
● Application areas: automotive press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics field, mold assembly and other industrial testing, measurement and control systems.
| Display Window | Low-power LED display | Full scale temperature drift | ≤10 ppm/℃ |
| switching mode | 2 switching inputs. 3 switching outputs (OC) | Temperature to zero drift | ≤10 μ V/℃ |
| Output Linearity | ＜0.01% | power supply (of an appliance etc) | 24 ±10% VDC |
| Comprehensive Accuracy | Better than 0.01% | excitation voltage | 5 VDC |
| A/D conversion speed | ＞100-400 times/second | Operating Temperature Range | -40~85 ℃ |
| Acceptance Sensitivity | ±30 mV/V | unit weight | 0.5 Kg |
| Input Load | 1~8 350Ω sensors | Power Consumption | ≤8W |
