●Used in situations where force measurement signals need to be converted into digital communication signals, standard analog output signals, and simple control situations
●Equipped with a standard serial port RS485 or RS232, supporting Modbus RTU protocol
●6-digit LED digital tube with a height of 7.1mm and 4 status indicator lights
●The controller has the function of judging the upper limit, middle limit, and lower limit limits
●Optional up to 8 outputs and 8 inputs
●5-level dynamic digital filtering, with a comparison speed of 200 times per second
●It can drive the controller output through the upper computer and partially replace the PLC

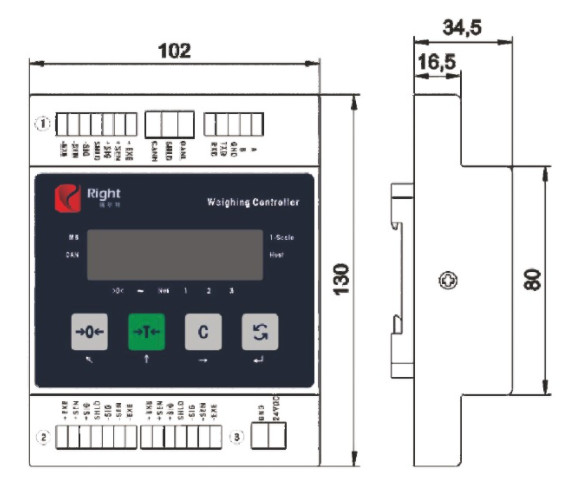

●Standard industrial rail installation (DIN)
●Applicable to fixed value control systems, weighing scales, packaging scales, process force measurement and control
● Application areas: automotive press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Display Window | 6-digit 0.28-inch LED display | Temperature drift to zero | ≤10 μ V/℃ |
| Output linearity | ＜0.02% | Excitation | 5 VDC |
| Comprehensive accuracy | Better than 0.01% | Power supply | 24 ±5 VDC |
| Comprehensive accuracy acceptance sensitivity | -3.6~ +3.6 mV/V | Overall Power Consumption | ≤6W |
| Input load | 3x4 350 Ω sensors | A/D conversion speed | 200 times/second |
| Readability | 1/100000 | Calibration | Weight calibration, remote calibration |
| Full scale temperature drift | ≤10 ppm/℃ | Operating temperature range | -10~40℃ |
