●Used in situations where force measurement signals need to be converted into digital communication signals, standard analog output signals, and simple control situations
●14 bit analog output signals can be selected from 4-20mA or 0-10 V
●The digital communication interface can be selected as RS485 or RS232
●Multiple filtering debugging modes make it easier to obtain target values
●Both power supply and signal have isolation processing, strong anti-interference ability, and more stable data acquisition and output
●LED displays real-time weight values, peaks, etc
●Comparable output, peak capture, peak comparison output
●Non weight calibration, TEDS automatic calibration
●High speed sampling (up to 1600 times), fast display speed
●The controller power supply adopts isolated DC24V ± 10% for safer and more stable power supply

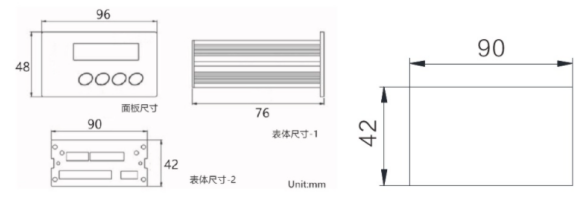

●Panel mounted, easy to operate
● Application areas: automotive press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Display window | Low power LED display | Full scale temperature drift | ≤10 ppm/℃ |
| Output specifications | 4~20 mA、0~±10V | Temperature drift to zero | ≤10 μ V/℃ |
| Output linearity | ＜0.01% | Power supply | 24 ±10% VDC |
| comprehensive accuracy | Better than 0.01% | Excitation | 5 VDC |
| A/D conversion speed | ＞ 100-400 times/second | Operating temperature range | -40~85 ℃ |
| Acceptance sensitivity | ±30 mV/V | Single piece weight | 0.5 Kg |
| Input load | 1-4 350 Ω sensors | Overall Power Consumption | ≤8W |
