● Pin shaft sensor used for fastener removal.
● Made of stainless steel / alloy steel material.
● Small outer dimensions, easy operation and installation.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 6.5,12,25,55t | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 1.2~1.5 mV/V | Excitation voltage | 5~15 V |
| Zero-point balance | ±0.03% mV/V | Maximum excitation voltage | 20 V |
| Nonlinearity | 0.5％ F.S. | Temperature compensation range | -10〜60℃ |
| Hysteresis error | 0.2％ F.S. | Operating temperature range | -20〜80℃ |
| Repeatability | 0.1％ F.S. | Safe load | 150％ F.S. |
| Creep (30 minutes) | 0.1％ F.S. | Destruction load | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S. / 10℃ | Cable wire size | φ4×4000 mm |
| Temperature coefficient of zero drift | 0.05％ F.S. / 10℃ | Unit weight | 0.3 kg |
| Input resistance | 750±20 Ω | Material | Stainless steel |
| Output resistance | 700±10 Ω | Protection | IP67 |

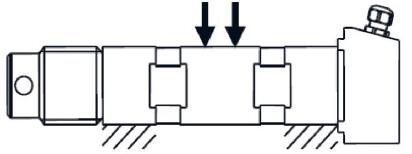

Direction of force | Wiring method |
 |  |
