● Low height, minimal deformation.
● Mainly used for measuring tensile and compressive forces in materials, as well as other industrial testing, measurement, and control systems.
● High dynamic response frequency.
● Patented product, infringement will be pursued
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
Parameter table
Output sensitivity | 1.0mV/V | Insulation resistance | ≥5000MΩ/100VDC |
Zero output | ±1%F.S. | Excitation voltage | 5-10V |
Nonlinearity | 0.1%F.S. | Maximum excitation voltage | 15V |
Hysteresis | 0.1%F.S. | Temperature compensation range | -10-60℃ |
Repeatability | 0.1%F.S. | Operating temperature range | -30-85℃ |
Creep (30min | 0.1%F.S. | Safe overload | 150%F.S. |
Temperature sensitivity drift | 0.05%F.S./10℃ | Ultimate overload | 200%F.S. |
Zero-point temperature drift | 0.05%F.S./10℃ | Cable wire size | 4x4000mm |
Input resistance | 350±20Ω | Material | (Stainless steel) |
Output resistance | 350±5Ω | Protection level | IP66 |

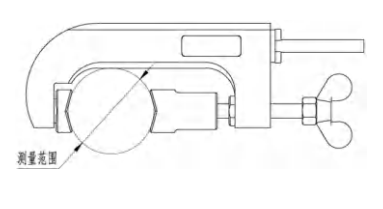

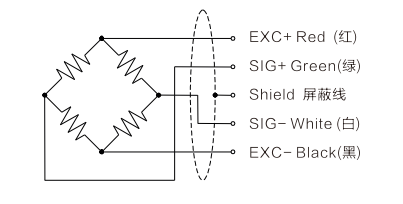

Direction of force | Wiring method |
 |  |
