Characteristics and Applications
●High precision, strong resistance to bias load
●Easy to install, IP66
●Accept custom specifications
●Precision control of robotic arms, surface grinding and polishing, precision machining in machining centers, precision testing of medical devices.
Rated range | Nominal (rated) torque Mnom | 2,30,50N.m |
Output sensitivity | Nominal (rated) sensitivity | 1.5±2.0%mV/V |
Zero output | Zero balance | ±0.05mV/V |
| Nonlinearity | Non-linearity | 0.2%F.S. |
| Hysteresis | Hysteresis | 0.5%F.S. |
| Repeatability | Repeatability | 0.1%F.S. |
| Creep (30 minutes) | Creep(5min) | 0.1%F.S. |
| Temperature coefficient of sensitivity drift | Temp.effect on output | 0.05%F.S./10℃ |
| Temperature coefficient of zero drift | Temp.effect on zero | 0.05%F.S./10℃ |
| Input resistance | Input impedance | 700±70Ω |
Output resistance | Output impedance | 700±50Ω |
Insulation resistance | Insulation | ≥5000MΩ/100VDC |
Excitation voltage | Recommended excitation | 5~12V |
Maximum excitation voltage | Maximum excitation | 15V |
Temperature compensation range | Compensated temp range | -10~60℃ |
Operating temperature range | Operation temp range | -10-80℃ |
Safe overload | Safe overload | 150%F.S. |
Ultimate overload | Ultimate overload | 200%F.S. |
Cable size | Cable size | φ2×200mm |
Protection level | Protection class | IP66 |

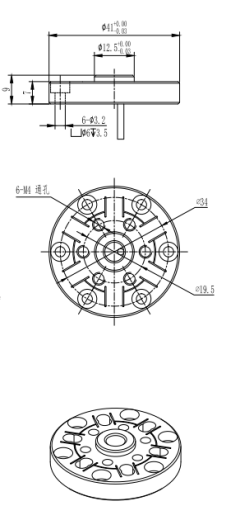

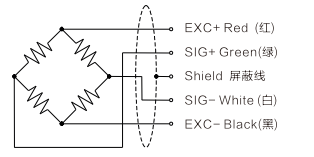

Wiring diagram |
 |
