● Mainly applied in sensors for grinding and polishing machines, characterized by the ability to rotate and measure force, high accuracy, and good resistance to lateral forces.
● Offers good stability and strong resistance to bending moments.
● Low profile design with minimal deformation for easy installation.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 5,10,20,50 kg | Insulation resistance | ≥5000 MΩ / 100VDC |
| Zero-point balance | 2.0±10% mV/V | Excitation voltage | 5 V |
| Nonlinearity | ±3％ mV/V | Maximum excitation voltage | 15 V |
| Temperature coefficient of sensitivity drift | 0.2％ F.S. / 10℃ | Temperature compensation range | -10〜60℃ |
| Temperature coefficient of zero drift | 0.2％ F.S. / 10℃ | Operating temperature range | -20〜80℃ |
| Input resistance | 385±20 Ω | Safe load | 150％ F.S. |
| Output resistance | 350±10 Ω | Destruction load | 200％ F.S. |
| Cable wire size | φ3×2000 mm | Material | Stainless steel |
| Unit weight | 0.1 kg | Protection | IP66 |

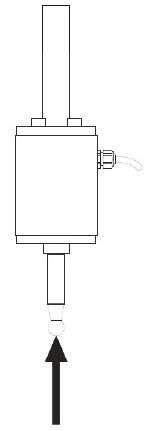

Direction of force | Wiring method |
 |  |
