● Low height, minimal deformation.
● Measures tensile force and compression force.
● Mainly used in automotive press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, and mold assembly in industrial measurement and control systems.
● Made of stainless steel.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

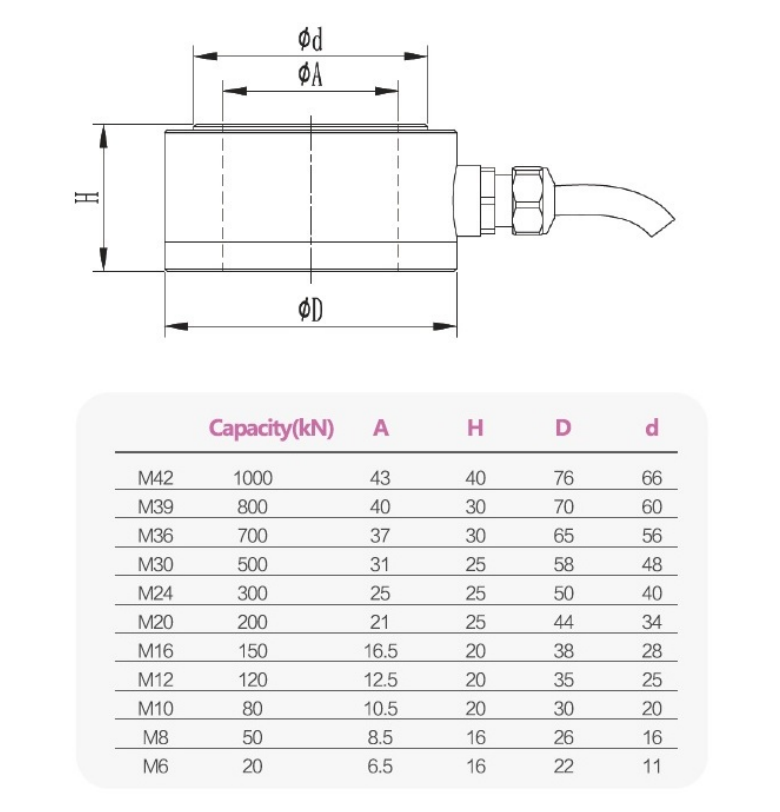

| Rated range | 20,50,80,120,200,300, 500,700,800,1000 kN | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 2.0±20％ mV/V | Excitation voltage | 10〜26 V |
| Zero-point balance | ±0.05％ F.S. | Maximum excitation voltage | 20 V |
| Nonlinearity | 1％ F.S. | Temperature compensation range | -10~60℃ |
| Hysteresis error | 1％ F.S. | Operating temperature range | -40~80℃ |
| Repeatability | 1％ F.S. | Safe load (E L) | 120％ F.S. |
| Creep (30 minutes) | 0.05％ F.S. | Destruction load (E d) | 150％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S. / 10℃ | Cable wire size | Φ3×4000 mm |
| Temperature coefficient of zero drift | 0.05％ F.S. / 10℃ | Material | Stainless steel |
| Input resistance | 385±10 Ω | Unit weight (G) | 0.3 Kg |
| Output resistance | 350±5 Ω | Protection | IP66 |
Direction of force | Wiring method |
 |  |
