● Static Torque Sensor
● Compact Structure for Easy Installation
● Protection Level: IP65
● Used for measuring torque values in static, non-continuous rotation situations.● Tension Measurement Sensor
● Compact Structure for Easy Installation
● Protection Level: IP65
● Extremely High Overload Capacity
● Primarily used for measuring tension in steel wire ropes.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 20N~25 kN | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 2.0±0.2% mV/V | Excitation voltage | 5~15V |
| Zero-point balance | ±2% F.S. | Maximum excitation voltage | 20V |
| Nonlinearity | 0.25％F.S. | Temperature compensation range | -20~80℃ |
| Hysteresis error | 0.25％F.S. | Operating temperature range | -20~80℃ |
| Repeatability | 0.1％F.S. | Safe load (E L) | 120％ F.S. |
| Creep (30 minutes) | 0.1％F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S./ 10℃ | Cable wire size | φ5×3000 mm |
| Temperature coefficient of zero drift | 0.05％ F.S./ 10℃ | Material | |
| Input resistance | 410±10 Ω | Single wire weight G | |
| Output resistance | 350±5 Ω | Protection | IP65 |

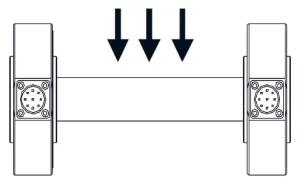

Direction of force | Wiring method |
 |  |
