● Stainless steel material, strong stability.
● Suitable for various environments, IP68/IP69K.
● With a protective and anti-contamination design, it can be used in food processing, pharmaceutical production, or construction material packaging, as it is easily cleaned.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 10,20,50,100,200 kg | Insulation resistance | ≥5000MΩ/100VDC |
| Accuracy grade | C3 | Excitation voltage | 5~15 V |
| Output sensitivity | 2.0±0.05mV/V | Maximum excitation voltage | 20 V |
| Zero output | ±2%F.S. | Temperature compensation range | -10〜40℃ |
| Nonlinearity | 0.018%F.S. | Operating temperature range | -30-70℃ |
Hysteresis | 0.017%F.S. | Safe load (E L) | 150%F.S. |
Repeatability | 0.018%F.S. | Ultimate overload | 300%F.S. |
| Creep (30 minutes) | 0.0166%F.S. | Cable wire size | φ5.4×1500mm |
| Temperature coefficient of sensitivity drift | 0.008%F.S./10℃ | Unit weight | 0.5kg |
Zero-point temperature drift | 0.0125%F.S./10℃ | Material | (Stainless steel) |
| Input resistance | 380±5Ω | Protection level | IP68/IP69K |
| Output resistance | 350±2Ω |

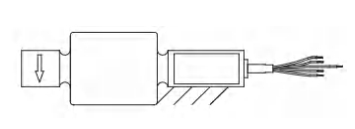

Direction of force | Wiring method |
 |  |
