● Stainless steel material, strong stability.
● Suitable for various environments, IP68.
● Mainly used in packaging scales, hopper scales, and various industrial weighing systems.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 5,10,20,30,50,100,200,500kg | Insulation resistance | ≥5000 MΩ / 100VDC |
| Accuracy grade | C3 | Excitation voltage | 5~15 V |
| Zero output | ±2%F.S. | Maximum excitation voltage | 20 V |
| Nonlinearity | 0.018％ F.S. | Temperature compensation range | -10〜40℃ |
| Hysteresis error | 0.017％ F.S. | Operating temperature range | -20〜60℃ |
| Repeatability | 0.018％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.0166％ F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.008％ F.S. / 10℃ | Cable wire size | φ5.4×3.15m |
| Temperature coefficient of zero drift | 0.0125％ F.S. / 10℃ | Material | 0.5 kg |
| Input resistance | 390±5 Ω | Unit weight (G) | Stainless steel |
| Output resistance | 350±2 Ω | Protection | IP68 |
| Output sensitivity | 2.0±0.05mV/V |

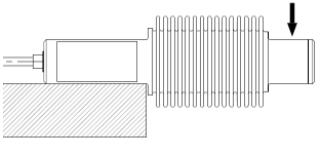

Direction of force | Wiring method |
 |  |
