● Compression-torsion compound force sensor.
● Low cross-talk error between the two signals.
● Low height, easy to install.
● Customizable specifications.
● Applied in automotive press-in, automated assembly, testing of 3C products, assembly of new energy products, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | F：20/30/50/100/200 /500/1000/2000 N M：1/2/3/5/10/20/30 / 50 N.m | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 1.0±10％ mV/V | Excitation voltage | 5〜15 V |
| Zero-point balance | ±2％ F.S. | Maximum excitation voltage | 20 V |
| Nonlinearity | 0.1％ F.S. | Temperature compensation range | -10~40℃ |
| Hysteresis error | 0.1％ F.S. | Operating temperature range | -20~75℃ |
| Repeatability | 0.1％ F.S. | Safe load (E L) | 150％ F.S. |
| Cross-talk error | 0.2％ F.S. | Destruction load (E d) | 200％ F.S. |
| Creep (30 minutes) | 0.05％ F.S. | Cable wire size | Φ4×4000 mm |
| Temperature coefficient of sensitivity drift | 0.05％ F.S. / 10℃ | Material | |
| Temperature coefficient of zero drift | 0.05％ F.S. / 10℃ | Unit weight (G) | 0.6 Kg |
| Input resistance | 350±10 Ω | Protection | IP66 |
| Output resistance | 350±10 Ω |

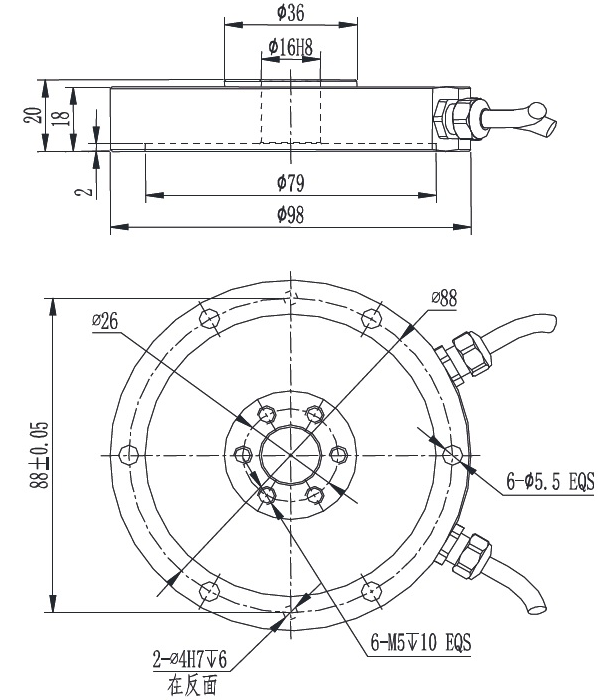

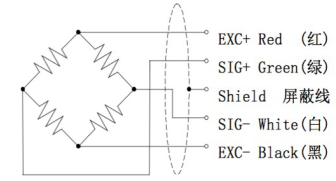

Direction of force | Wiring method |
 |  |
