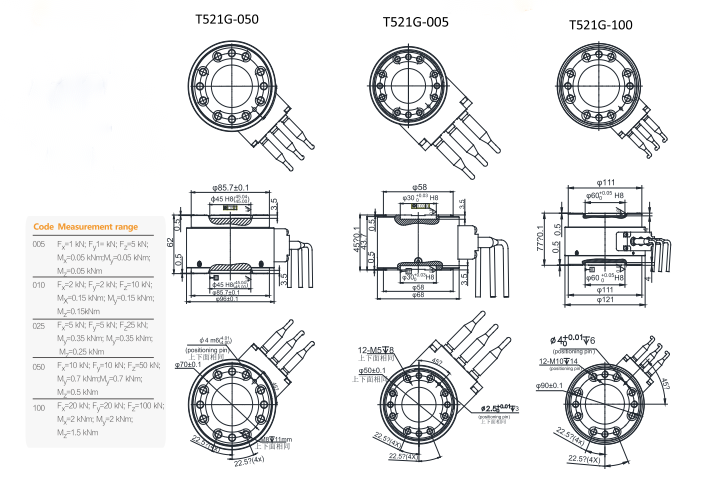

| Code | Measurement range |
| 005 | Fx=1kN;Fy=1kN;Fz=5kN;Mx=0.05kNm;My=0.05kNm;Mz=0.05kNm |
| 010 | Fx=2kN;Fy=2kN;Fz=10kN;Mx=0.15kNm;My=0.15kNm;Mz=0.15kNm |
| 025 | Fx=5kN;Fy=5kN;Fz=25kN;Mx=0.35kNm;My=0.35kNm;Mz=0.25kNm |
| 050 | Fx=10kN;Fy=10kN;Fz=50kN;Mx=0.7kNm;My=0.7kNm;Mz=0.5kNm |
| 100 | Fx=20kN;Fy=20kN;Fz=100kN;Mx=2kNm;My=2kNm;Mz=1.5kNm |
| Output sensitivity | ≈1.0mV/V | Insulation resistance | ≥5000MΩ/100VDC |
Zero output | ±2%F.S. | Excitation voltage | 5~12V |
| Nonlinearity | 0.03%F.S. | Maximum excitation voltage | 15V |
| Hysteresis error | 0.03%F.S. | Temperature compensation range | -10-40℃ |
| Repeatability | 0.03%F.S. | Operating temperature range | -20-75℃ |
Cross-talk error | 1%F.S | Safe overload | 150%F.S. |
| Creep (30 minutes) | 0.05%F.S. | Ultimate overload | 300%F.S. |
| Temperature coefficient of sensitivity drift | 0.05%F.S/10℃ | Cable wire size | φ4×4000mm |
Zero-point temperature drift | 0.05%F.S./10℃ | Protection | IP66 |
Direction of force | Wiring method |
 |   |
