●High precision, strong resistance to bias load;
● Easy to install, IP66;
● Accept custom specifications;
● Precision control of robotic arms, surface grinding and polishing, precision machining in machining centers, precision testing of medical devices.;
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | Fx=Fy=5,10,20,30,50kg Fz=10,20,50,75,100kg | Insulation resistance | ≥2000MΩ/50VDC |
| Output sensitivity | 1±20mV/V | Excitation voltage | 5-12V |
Zero output | ±0.05mV/V | Maximum excitation voltage | 15V |
| Nonlinearity | 0.5%F.S. | Temperature compensation range | -10-60℃ |
| Hysteresis error | 0.5%F.S. | Operating temperature range | -20-80℃ |
| Repeatability | 0.5%F.S. | Safe overload | 150%F.S. |
| Creep (30 minutes) | 0.3%F.S. | Ultimate overload | 200%F.S. |
| Temperature coefficient of sensitivity drift | 0.05%F.S./10℃ | Cable wire size | 3-Φ2×2m |
Zero-point temperature drift | 0.05%F.S./10℃ | Protection | IP66 |
| Input resistance | 780±20Ω | Output resistance | 700±10Ω |

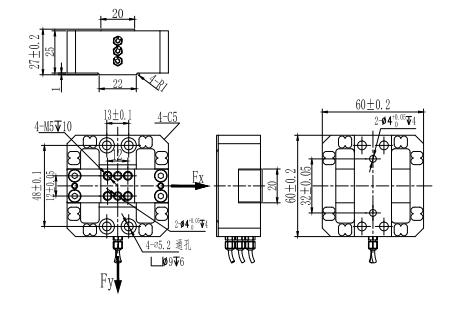

Direction of force | Wiring method |
 |  |
