● High precision, strong resistance to bias load;
● Easy to install, IP 66;
● Customizable specifications
● Used for military-grade measurements.
● Mainly used in large aircraft assembly, automotive assembly and crash testing, precision engraving in machining centers, and precision testing of medical equipment.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | X:10/25/50 Y:10/25/50 Z:25/50/100 | Insulation resistance | ≥5000MΩ/ 100VDC |
| Sensitivity | ≈1.0 mV/V | Excitation voltage | 5〜10V |
| Zero-point balance | ±2% F.S. | Maximum excitation voltage | 15V |
| Nonlinearity | 0.2％F.S. | Temperature compensation range | -10~40℃ |
| Hysteresis error | 0.2％F.S. | Operating temperature range | -20~75℃ |
| Repeatability | 0.2％F.S. | Safe load (E L) | 150% F.S. |
| Creep (30 minutes) | 0.2％F.S. | Destruction load (E d) | 300％F.S. |
| Temperature coefficient of sensitivity drift | 0.1％F.S. / 10℃ | Cable wire size | φ6x3000 mm |
| Temperature coefficient of zero drift | 0.1％F.S. / 10℃ | Material | |
| Input resistance | 780±20 Ω | Unit weight (G) | 1.6 Kg |
| Output resistance | 700±10 Ω | Protection | IP66 |

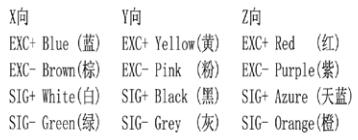

Direction of force | Wiring method |
 |  |
