●Using dedicated waterproof joints
●Compensation adjustment adopts a high stability multi turn potentiometer
●The cover plate is equipped with waterproof rubber gaskets, which are waterproof and dustproof, suitable for industrial sites with harsh environmental conditions
●Prevent damage to sensors caused by induced lightning and surge signals

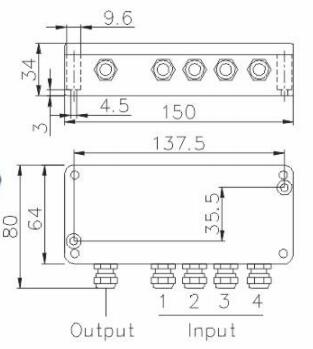

●Four in and one out junction box
● Application areas: automotive press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Output specifications | 4~ 20mA | Output Load | ≤5002 (Output load resistance) |
| Output linearity | Better than 0.05% | Power supply | 15 ~ 26VDC |
| Comprehensive accuracy | 优于0.05% | Overall power consumption | ≤0.2W |
| Output ripple | ≤5mVp-p | Operating temperature range | -20-60C |
| ADsampling | 40SPS | Single piece weight | 0.45kg |
| Input load | 1-4 sensors | Material | Aluminum alloy |
| Excitation | 6VDC | Protection grade | IP66 |
