● Stainless steelMaterial
● High accuracy, stable and reliable measurement.
● Used for occasions such as upper and lower molds, tooling fixtures, and testing parallelism.
● Customizable with various specifications.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 50,100,200,500 N | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 0.5±20% mV/V | Excitation voltage | 5V |
| Zero-point balance | ± 2% F.S. | Maximum excitation voltage | 10V |
| Nonlinearity | 0.05％ F.S. | Temperature compensation range | -10~60℃ |
| Hysteresis error | 0.05％ F.S. | Operating temperature range | -20~80℃ |
| Repeatability | Safe load (E L) | 150％ F.S. | |
| Creep (30 minutes) | Destruction load (E d) | 300％ F.S. | |
| Temperature coefficient of sensitivity drift | 0.05％ F.S./ 10℃ | Cable wire size | φ3×3000 mm |
| Temperature coefficient of zero drift | 0.05％ F.S./ 10℃ | Material | |
| Input resistance | 350±10 Ω | Unit weight | |
| Output resistance | 350±10 Ω | Protection | IP66 |

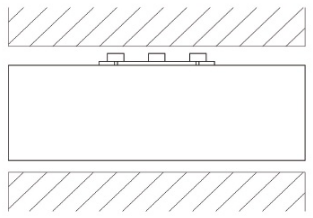

Direction of force | Wiring method |
 |  |
