Thread force sensors

Category: Thread force sensors

T119C Bolt Preload Force Sensor provides an ideal solution for bolt force monitoring. It can be used in product assembly lines in various industries such as automotive assembly, robotics, and other semi/fully automated assembly lines for measuring or monitoring bolt force. The inner through-hole diameter can be customized to meet the application requirements of customers.
right@ritcl.com

Characteristics and Uses

● Low profile design, providing a stable structure.

● Multiple measurement ranges available, ranging from 0.5kN to 20kN.

● Available in both aluminum and stainless steel materials to meet different application needs.

● Primarily used for monitoring bolt forces.

● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

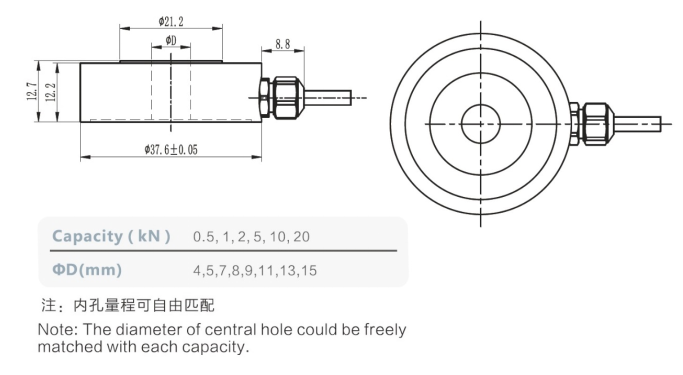

Installation dimensions

T119C 压力螺纹预紧力传感器 1.png




Parameter table

Rated range0.5,1,2,5,10,20 kNInsulation resistance≥5000 MΩ / 100VDC
Sensitivity1.5±10% mV/VExcitation voltage5V
Zero-point balance±2% F.S.Maximum excitation voltage15 V
Nonlinearity0.2% F.S.Temperature compensation range-10~60℃
Hysteresis error0.2% F.S.Operating temperature range-20~80℃
Repeatability0.1% F.S.Safe load (E L)150% F.S.
Creep (30 minutes)0.2% F.S.Destruction load (E d)300% F.S.
Temperature coefficient of sensitivity drift0.1% F.S. / 10℃Cable wire sizeΦ4×4000 mm
Temperature coefficient of zero drift0.1% F.S. / 10℃MaterialStainless steel
Input resistance780±20 ΩUnit weight (G)0.1 Kg
Output resistance700±10 ΩProtectionIP67






Direction of force

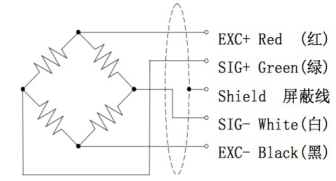

Wiring method

T119C 压力螺纹预紧力传感器 2.pngT119C 压力螺纹预紧力传感器 3.png


If you would like more information, please contact us!
