● Low profile design, providing a stable structure.
● Multiple measurement ranges available, ranging from 10kN to 20kN.
● Available in both aluminum and stainless steel materials to meet different application needs.
● Primarily used for monitoring bolt forces.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

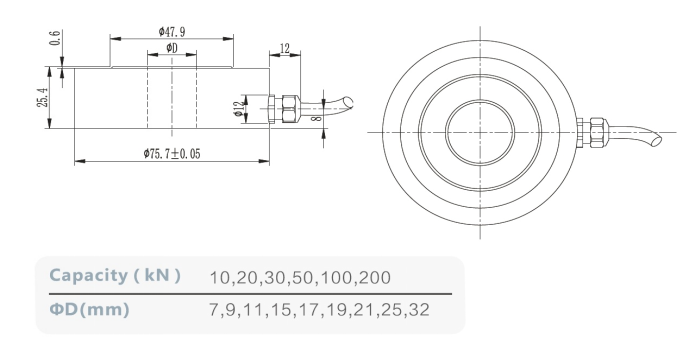

Installation dimensions
| Rated range | 10,20,30,50,100,200 kN | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 1.5±10％ mV/V | Excitation voltage | 5〜15 V |
| Zero-point balance | ±0.03％ F.S. | Maximum excitation voltage | 20 V |
| Nonlinearity | 0.1％ F.S. | Temperature compensation range | -10~60℃ |
| Hysteresis error | 0.1％ F.S. | Operating temperature range | -20~80℃ |
| Repeatability | 0.05％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.05％ F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S. / 10℃ | Cable wire size | Φ4×4000 mm |
| Temperature coefficient of zero drift | 0.05％ F.S. / 10℃ | Material | Stainless steel |
| Input resistance | 780±20 Ω | Unit weight (G) | 0.1 Kg |
| Output resistance | 780±10 Ω | Protection | IP67 |

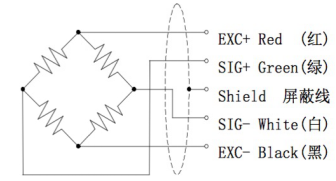

Direction of force | Wiring method |
 |  |
