● Made of stainless steel material, providing strong stability
● Suitable for various environments, IP68
● Primarily used in industrial weighing systems, such as those used in the food and pharmaceutical industries
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated capacity | 10,20,50,100 kg | Insulation resistance | ≥5000 MΩ / 100VDC |
| Accuracy grade | C3 | Excitation voltage | 5 V |
| Zero output | ±5％ F.S. | Maximum excitation voltage | 12 V |
| Nonlinearity | 0.0166％ F.S. | Temperature compensation range | -10~40℃ |
| Hysteresis error | 0.0166％ F.S. | Operating temperature range | -10~50℃ |
| Repeatability | 0.018％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.0166％ F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.0175％ F.S. / 10℃ | Cable wire size | φ6×2000 mm |
| Temperature coefficient of zero drift | 0.0125％ F.S. / 10℃ | Material | 0.5 kg |
| Input resistance | 390±5 Ω | Unit weight (G) | Stainless steel (Stainless steel) |
| Output resistance | 350±5 Ω | Protection | IP68 |
| Output sensitivity | 1.5±10%mV/V (5kg) 2.0±10%mV/V | 最大秤盘尺寸 | 500mm×400mm |

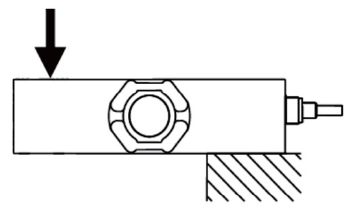

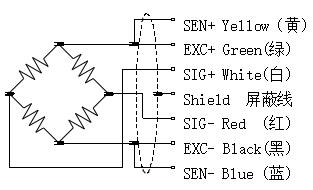

Direction of force | Wiring method |
 |  |
