● Stainless steel material, strong stability.
● Suitable for various environments, IP68.
● Mainly used in packaging scales, hopper scales, and various industrial weighing systems.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

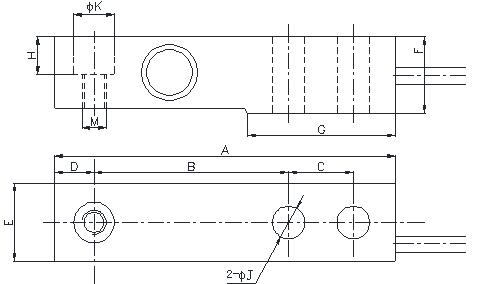

| Cap（t） | A | B | C | D | E | F | G | H | J | K | M |
| 0.22~1.76 | 133.4 | 76.2 | 25.4 | 15.4 | 30.7 | 30.2 | 57.7 | 14.2 | 13 | 20.6 | M12 |
| 2.2 | 136.6 | 76.2 | 25.4 | 18.4 | 36.8 | 36.6 | 55.6 | 16.6 | 13 | 12.5 | M12 |
| 3 | 139.7 | 79.2 | 25.4 | 18.4 | 39 | 36.6 | 57.9 | 16.6 | 15 | 12.5 | M12 |
| 4.4 | 171.5 | 95.2 | 38.1 | 21.5 | 42.9 | 42.9 | 73.8 | 20.9 | 19 | 22.2 | M20 |
| Rated range | 0.11,0.22,0.55,1.1, 1.76,2.2,4.4t | Insulation resistance | ≥5000MΩ/ 100VDC |
| Accuracy grade | C3 | Excitation voltage | 5V |
| Zero-point balance | ±2％F.S. | Maximum excitation voltage | 15V |
| Nonlinearity | 0.017％F.S. | Temperature compensation range | -10〜40℃ |
| Hysteresis error | 0.017％F.S. | Operating temperature range | -20〜60℃ |
| Repeatability | 0.017％F.S. | Safe load (E L) | 150％F.S. |
| Creep (30 minutes) | 0.0166％F.S. | Destruction load (E d) | 300％F.S. |
| Temperature coefficient of sensitivity drift | 0.014％F.S. / 10℃ | Cable wire size | φ5.4×3000 mm |
| Temperature coefficient of zero drift | 0.0125％F.S. / 10℃ | Material | 0.9 kg (0.55~1.76t) 1.6 kg (2.2t) 2.2 kg (4.4t) |
| Input resistance | 390±3Ω | Unit weight (G) | Stainless steel (Stainless Steel) |
| Output resistance | 350±5Ω | Protection | IP68 |
| Output sensitivity | 1.94±0.1% mV/V |
Direction of force | Wiring method |
 |  |
