Category: Multidimensional force sensors

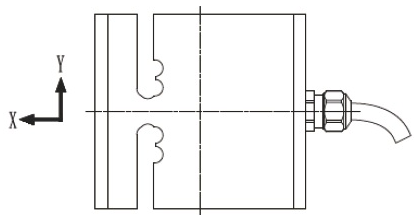

The T501C multi-axis sensor is designed to measure the force and real-time changes along the two axes (x, y). This product is particularly suitable for applications in robotic arms, CNC centers, complex surface machining, and high-precision medical equipment. The sensor offers high accuracy and strong resistance to eccentric loads.

Characteristics and Uses

● High precision, low cross-talk, strong resistance to bias load

● Easy to install;

● Customizable specifications

● Precision control of robotic arms, curved surface grinding and polishing, precision engraving in machining centers, precise measurement in medical equipment.

● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

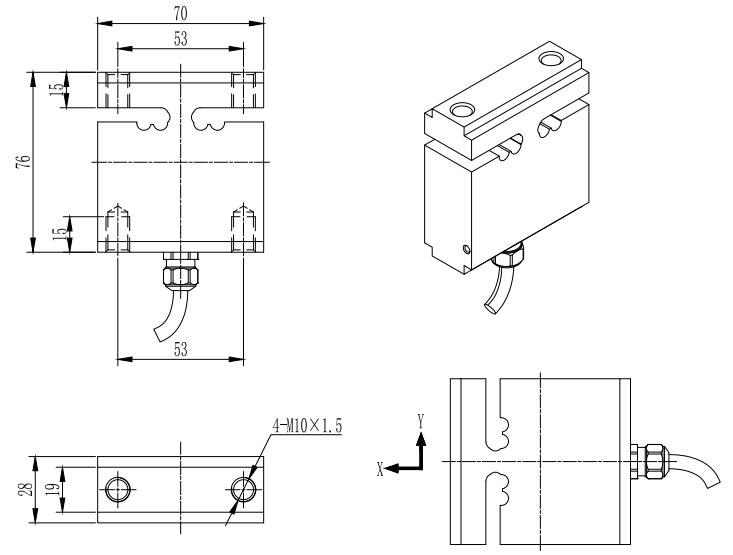

Installation dimensions

T507 二维力传感器 1.jpg

Parameter table

Rated range	X:20/50/100/150/200N Y:20/50/100/150/200N	Insulation resistance	≥5000 MΩ/ 100VDC
Sensitivity	1.1±0.1 mV/V (X-axis) 2.2±0.2 mV/V (Y-axis)	Excitation voltage	5V
Zero-point balance	±0.5 F.S.	Maximum excitation voltage	15 V
Nonlinearity	0.05％ F.S.	Temperature compensation range	-10~40℃
Hysteresis error	0.05％ F.S.	Operating temperature range	-20~60℃
Repeatability	0.05％ F.S.	Safe load (E L)	150% F.S.
Creep (30 minutes)	0.05％ F.S.	Destruction load (E d)	200％ F.S.
Temperature coefficient of sensitivity drift	0.05％ F.S. / 10℃	Cable dimensions	Φ6-4m
Temperature coefficient of zero drift	0.05％ F.S. / 10℃	Protection	IP65
