They are connected to piezoelectric acceleration sensors to form a testing system for measuring physical parameters such as vibration, force, and pressure. They are widely used in mechanical manufacturing, power generation, aviation, aerospace, navigation, construction, chemical explosives, and other departments. This instrument is equipped with a second-order Butterworth low-pass filter to improve the signal-to-noise ratio and obtain optimal testing results.

Characteristics and Uses

● Single-channel small-size charge amplifier

● Measurement of physical parameters such as vibration, force, and pressure.

● Widely used in mechanical manufacturing and mechanical measurement in power applications.

● Second-order Butterworth low-pass filter.

● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

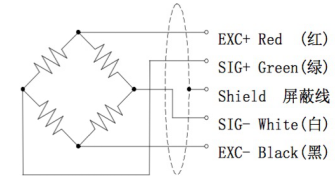

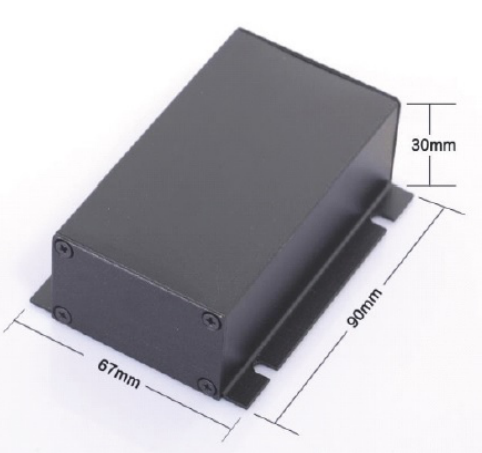

Installation dimensions

T499 小型静态电荷放大器 1.png

Parameter table

Maximum output charge quantity	100000 pC	Frequency response range	0.5Hz~100kHz
Gain	1mV/pc~10mV/pc	Maximum output amplitude	±5 mA
Accuracy	≤1%	Power supply	DC10~30V or ±6~±15V
