Category: Piezoelectric sensors

T401 piezoelectric sensor converts the measured force into an electrical signal using piezoelectric material. It has a wide frequency range and dynamic range. Due to its robust structure, this product has a long service life. An IEPE circuit can also be added to the product to convert the signal into a voltage output.

Characteristics and Uses

● Made of stainless steel

● Suitable for the automation industry

● Wide bandwidth and dynamic range

● IEPE optional circuit

● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

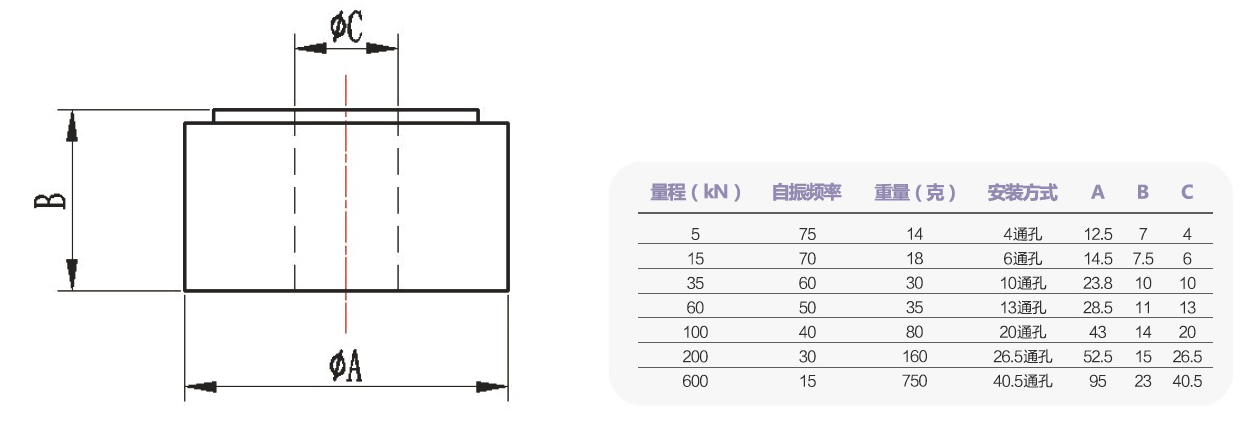

Installation dimensions

T401 压电力传感器 1.png

Parameter table

Rated range	5,15,35,60,100,200,600 kN	Sealing method	Laser welding
Sensitivity	4 pC/N 2/0.7 pC/N (600kN)	Output mode	M5
Nonlinearity	1％ F.S.	Cable connection	D01
Operating temperature range	-54 ~ +121℃	Material	Stainless steel
