● Low height, small deformation, easy installation;
● Tension and compression in both directions;
● Mainly used for push-pull force measurement, hopper scales, various industrial weighing systems, etc;
● Automotive press-fitting, automated assembly, 3C product testing, assembly of new energy products, medical testing, robotics, mold assembly.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 10,20,30,50,100,200,350,500, 1000,2000 kN | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 1.5±10％ mV/V | Excitation voltage | 5~15V |
| Zero-point balance | 0.05％ F.S. | Maximum excitation voltage | 20V |
| Nonlinearity | 0.1％ F.S. | Temperature compensation range | -10~40℃ |
| Hysteresis error | 0.1％ F.S. | Operating temperature range | -20~70℃ |
| Repeatability | 0.05％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.05％ F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S./ 10℃ | Cable wire size | |
| Temperature coefficient of zero drift | 0.05％ F.S./ 10℃ | Material | Alloy steel |
| Input resistance | 780±20 Ω/385±20Ω | Unit weight (G) | |
| Output resistance | 700±10 Ω/350±10Ω | Protection | IP66 |

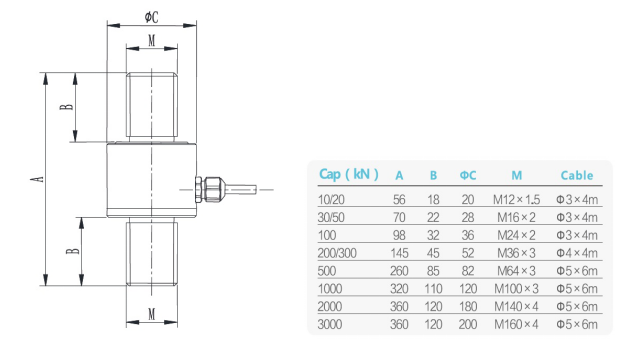

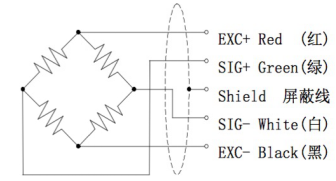

Direction of force | Wiring method |
 |  |
