Category: Pull-Pressure sensors

The T320A S-type load cell is used for measuring both tensile and compression forces. With its compact design, it is well-suited for various applications with limited space. It has a capacity range of 500-2000N and finds extensive use in automation, robotics, medical equipment, as well as various control and measurement systems. Due to its high dynamic response frequency, it is suitable for fast measurements.

Characteristics and Uses

● S-type sensor, high accuracy;

● Easy installation;

● Bi-directional tension and compression;

● Mainly used for force measurement, push-pull force gauge, hopper scales, and various industrial weighing systems.

● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

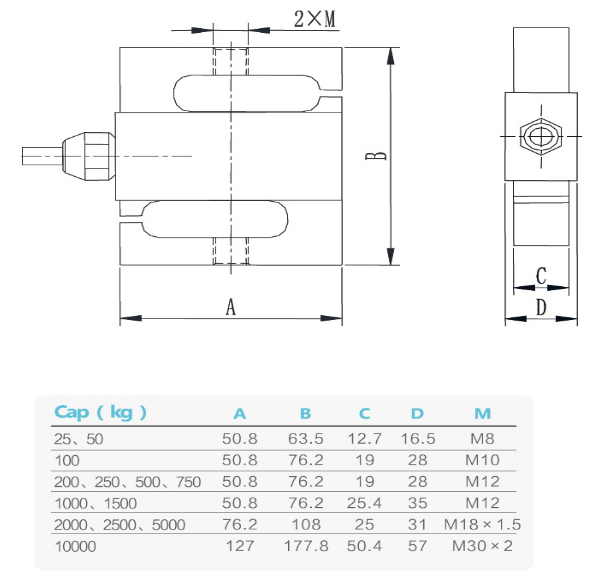

Installation dimensions

T320A 拉压双向测力传感器 1.png

Parameter table

Rated range	25,50,100,200,250,500 kg 0.75,1,1.5,2,2.5,5,10 T	Insulation resistance	≥5000 MΩ / 100VDC
Sensitivity	3.0±1％ mV/V	Excitation voltage	5~15V
Zero-point balance	±0.06％ F.S.	Maximum excitation voltage	20V
Nonlinearity	0.03％ F.S.	Temperature compensation range	-10~40℃
Hysteresis error	0.03％ F.S.	Operating temperature range	-20~70℃
Repeatability	0.03％ F.S.	Safe load (E L)	150％ F.S.
Creep (30 minutes)	0.024％ F.S.	Destruction load (E d)	200％ F.S.
Temperature coefficient of sensitivity drift	0.02％ F.S./ 10℃	Cable wire size	Φ5×3000 mm
Temperature coefficient of zero drift	0.02％ F.S./ 10℃	Material	Alloy steel
Input resistance	381±10 Ω	Unit weight (G)
Output resistance	350±5 Ω	Protection	IP66
