● Micro sensor, low height, small deformation.
● Made of stainless steel material.
● Tension and compression in both directions.
● High dynamic response frequency.
● Mainly used in automotive press-fitting, automated assembly, 3C product testing, assembly of new energy products, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

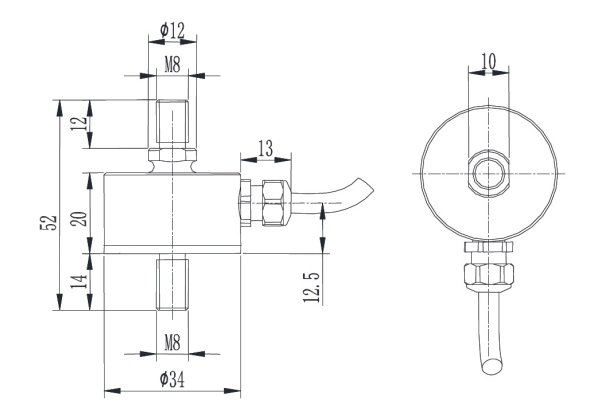

Installation dimensions
| Rated range | 0.5,1,1.5,2,3,5 kN | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 1.5±10％ mV/V | Excitation voltage | 5~15V |
| Zero-point balance | ±0.05％ F.S. | Maximum excitation voltage | 20V |
| Nonlinearity | 0.2％ F.S. | Temperature compensation range | -10~60℃ |
| Hysteresis error | 0.1％ F.S. | Operating temperature range | -20~80℃ |
| Repeatability | 0.1％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.1％ F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S. / 10℃ | Cable wire size | Φ4×4000 mm |
| Temperature coefficient of zero drift | 0.05％ F.S. / 10℃ | Material | Stainless steel |
| Input resistance | 700±10 Ω | Unit weight (G) | 0.1 Kg |
| Output resistance | 700±10 Ω | Protection | IP68 |
Direction of force | Wiring method |
 |  |
