●High precision, strong resistance to bias load;
● Easy to install, IP66;
● Accept custom specifications;
● Precision control of robotic arms, surface grinding and polishing, precision machining in machining centers, precision testing of medical devices.;
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

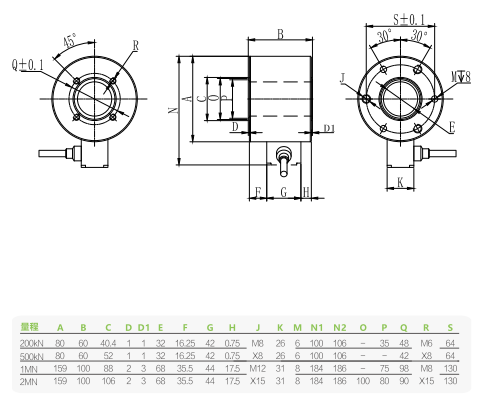

| Rated range | Please refer to the table | Insulation resistance | ≥2000MΩ/50VDC |
| Output sensitivity | 2.0±10%mV/V | Excitation voltage | 5-12V |
Zero output | ±0.05mV/V | Maximum excitation voltage | 15V |
| Nonlinearity | 0.5%F.S. | Temperature compensation range | -10-40℃ |
| Hysteresis error | 0.5%F.S. | Operating temperature range | -20-60℃ |
| Repeatability | 0.5%F.S. | Safe overload | 150%F.S. |
| Creep (30 minutes) | 0.5%F.S. | Ultimate overload | 200%F.S. |
| Temperature coefficient of sensitivity drift | 0.05%F.S./10℃ | Cable wire size | φ6-4000mm |
Zero-point temperature drift | 0.05%F.S./10℃ | Protection | IP67 |
| Input resistance | 380±20Ω | Output resistance | 350±10Ω |
Direction of force | Wiring method |
 |  |
