● Low height, minimal deformation, small outer dimensions.
● Made of stainless steel material, customizable for high temperatures.
● Protection level: IP67, customizable.
● Used in automotive press-fitting, automated assembly, 3C product testing, assembly of new energy products, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
● High dynamic response frequency.;
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

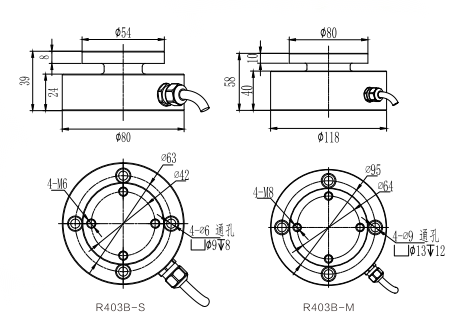

| Rated range | 1.5,2.5t (R403B-S) 5,6,10t(R403B-M) | Insulation resistance | ≥5000MΩ/100VDC |
| Output sensitivity | 1.0±20%mV/V | Excitation voltage | 5-12V |
Zero output | ±3％mV/V | Maximum excitation voltage | 15V |
| Nonlinearity | 0.2%F.S. | Temperature compensation range | -10-40℃ |
| Hysteresis error | 0.2%FS. | Operating temperature range | -20-60℃ |
| Repeatability | 0.2%MF.S | Safe overload | 150%F.S. |
| Creep (30 minutes) | 0.2%F.S. | Ultimate overload | 200%F.S. |
| Temperature coefficient of sensitivity drift | 0.05%F.S./10℃ | Cable wire size | φ5-4m |
Zero-point temperature drift | 0.05%F.S./10℃ | Protection | IP66 |
| Input resistance | 780±20Ω | Output resistance | 700±10Ω |
Direction of force | Wiring method |
 |  |
