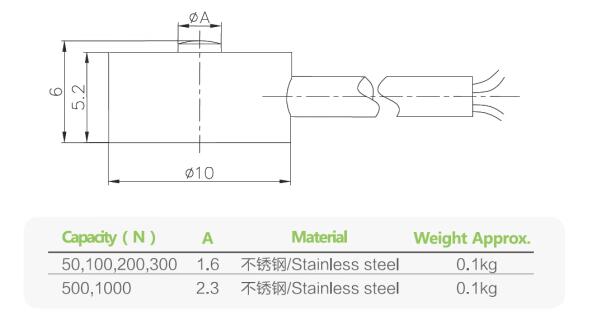

● Low height, small deformation, small outer dimensions.
● Made of stainless steel material, customizable for high temperatures.
● Customizable protection level: IP67, IP68.
● Used in automotive press-fitting, automated assembly, 3C product testing, assembly of new energy products, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
● High accuracy, long-term stability, good reliability, fatigue resistance, high frequency of use, good creep performance, low temperature drift, high dynamic response frequency.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | 50,100,200,500 N 1000 N | Insulation resistance | ≥5000 MΩ / 100VDC |
| Sensitivity | 1.0±20％ mV/V | Excitation voltage | 5~12V |
| Zero-point balance | ±2％ F.S. | Maximum excitation voltage | 15V |
| Nonlinearity | 0.5％ F.S. | Temperature compensation range | -10~60℃ |
| Hysteresis error | 0.2％ F.S. | Operating temperature range | -20~80℃ |
| Repeatability | 0.2％ F.S. | Safe load (E L) | 150％ F.S. |
| Creep (30 minutes) | 0.2％ F.S. | Destruction load (E d) | 200％ F.S. |
| Temperature coefficient of sensitivity drift | 0.05％ F.S./ 10℃ | Cable wire size | φ2×4000 mm |
| Temperature coefficient of zero drift | 0.05％ F.S./ 10℃ | Material | Stainless steel |
| Input resistance | 800〜1100 Ω | Unit weight (G) | 28g |
| Output resistance | 800〜1100 Ω | Protection | IP67 （Customizable IP68） |
Direction of force | Wiring method |
 |  |
