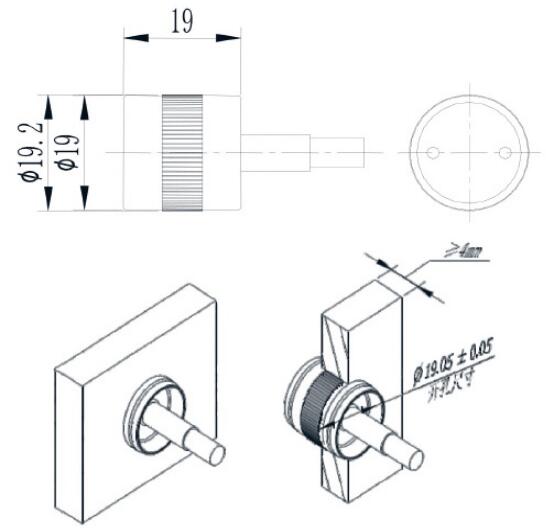

● Recessed installation, convenient to use.
● Protection level: IP68.
● Used in rail tracks, large-scale storage facilities, large presses, and steel structure plants.
● Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
| Rated range | ＞20 N/mm² | Insulation resistance | ≥5000 MΩ / 100VDC |
| Zero-point balance | ±0.25 F.S. | Excitation voltage | 5~15 V |
| Nonlinearity | 0.1％F.S. | Maximum excitation voltage | 20 V |
| Temperature coefficient of sensitivity drift | 0.05％ F.S. / 10℃ | Temperature compensation range | -10〜40℃ |
| Temperature coefficient of zero drift | 0.05％ F.S. / 10℃ | Operating temperature range | -20〜60℃ |
| Input resistance | 700±10 Ω | Safe load | 150％ F.S. |
| Output resistance | 700±10 Ω | Destruction load | 200％ F.S. |
| Cable wire size | φ4×2000 mm | Material | Stainless steel |
| Unit weight | 0.1 kg | Protection | IP68 |

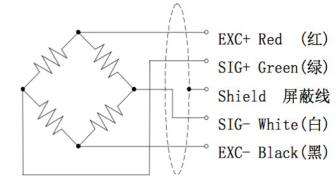

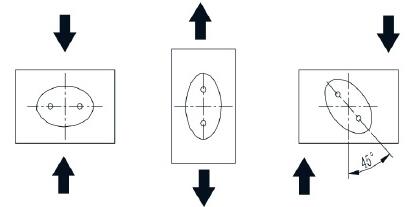

Direction of force | Wiring method |
 |  |
